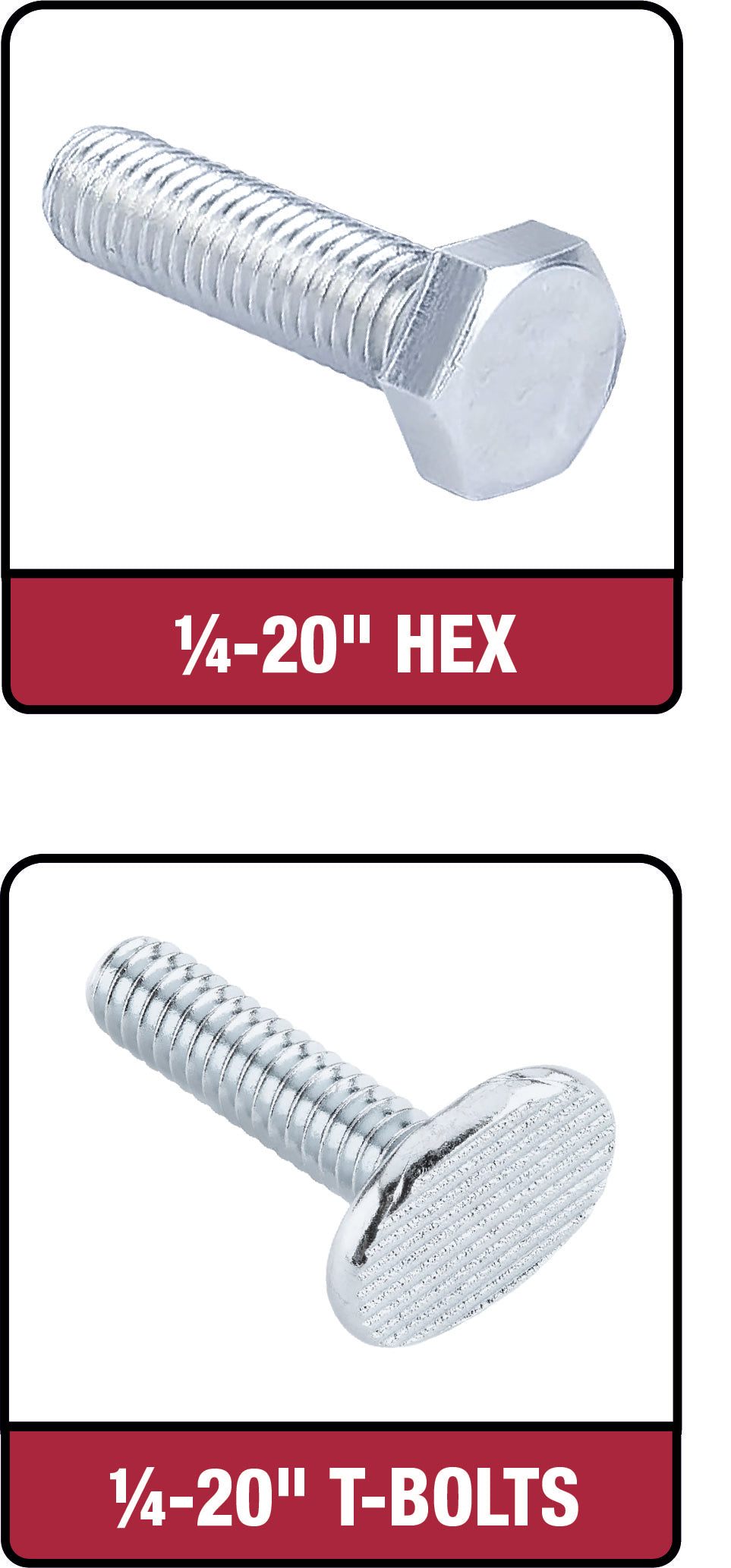

The Milescraft® Universal T-Trax system features a T-slot that accepts both 1/4-20” T-Bolts and 1/4-20″ Hex-Bolts. This allows you to utilize all of the hardware and T-Track accessories.

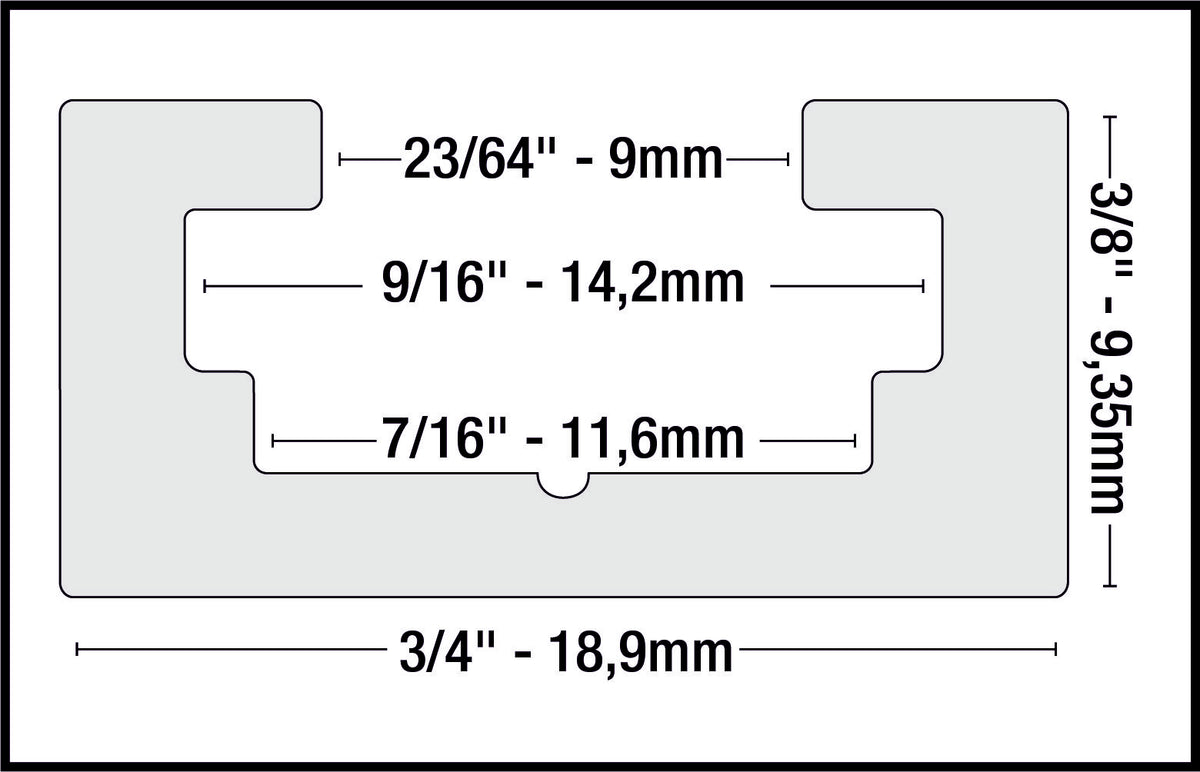

Universal 3/4″ Wide x 3/8″ Deep (19mm X 9mm) design
Pre-drilled mounting holes in base
Mounting holes are 4″ (101mm) on center, 2″ (51mm) from each end
Made of extruded aluminum

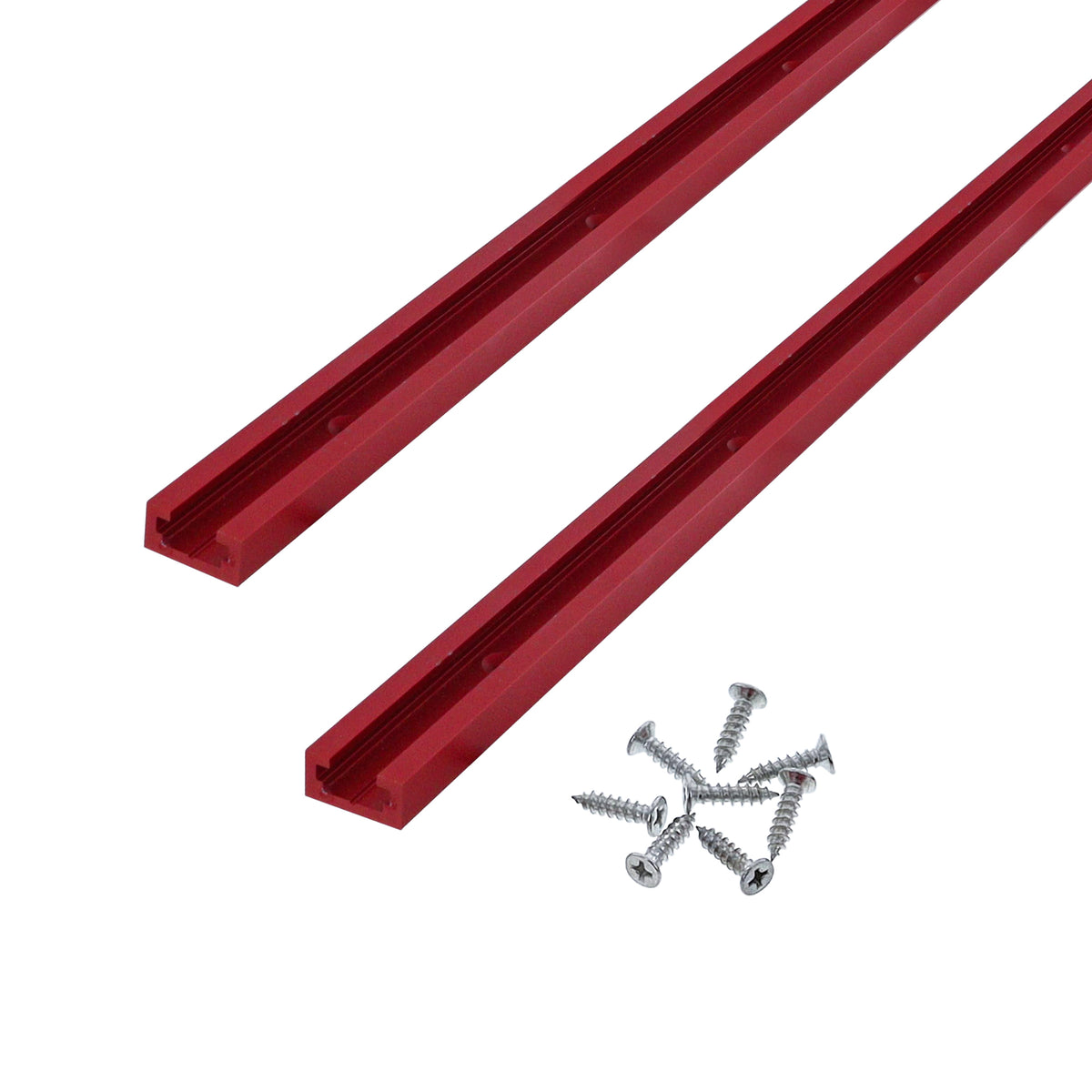

Includes two rails and mounting screws

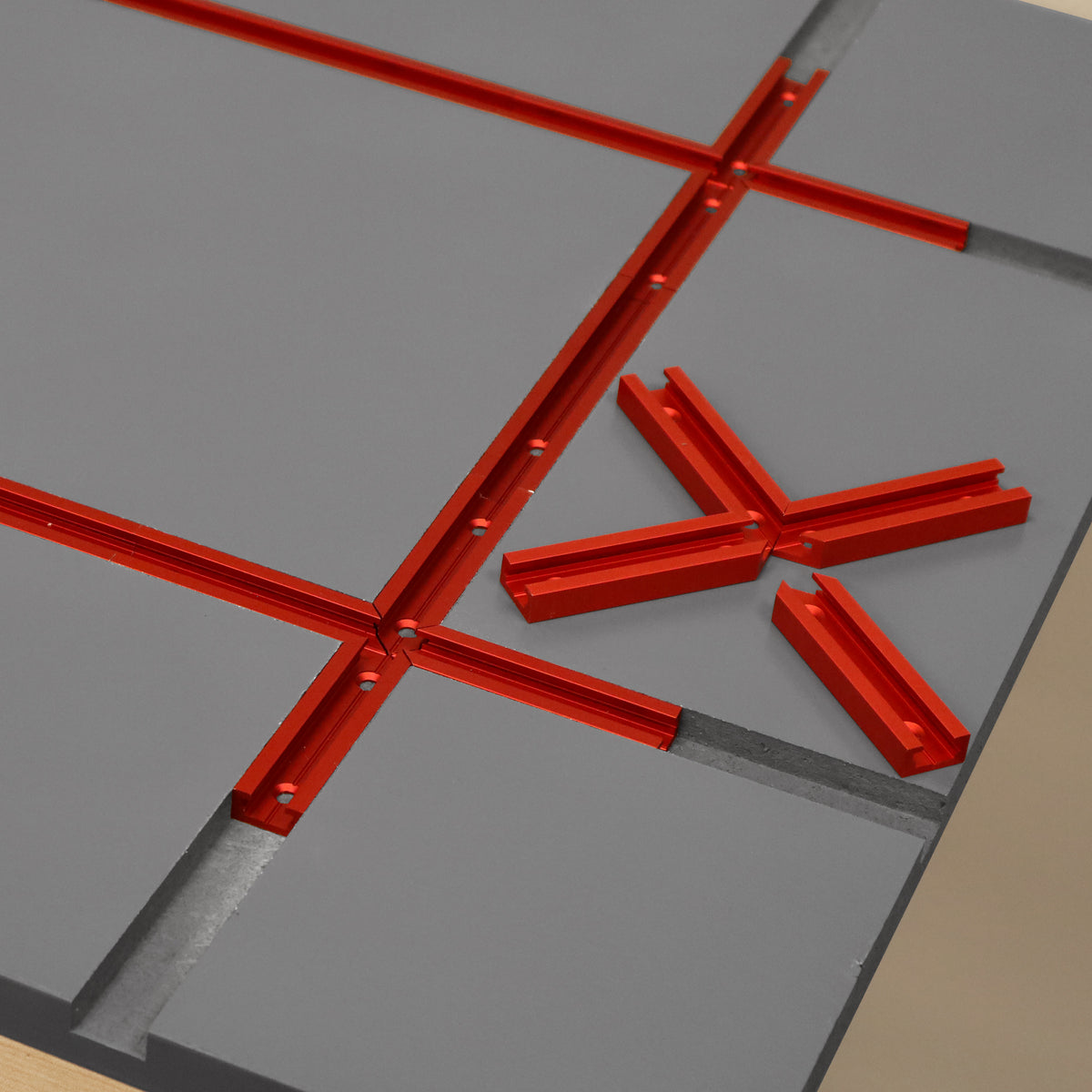

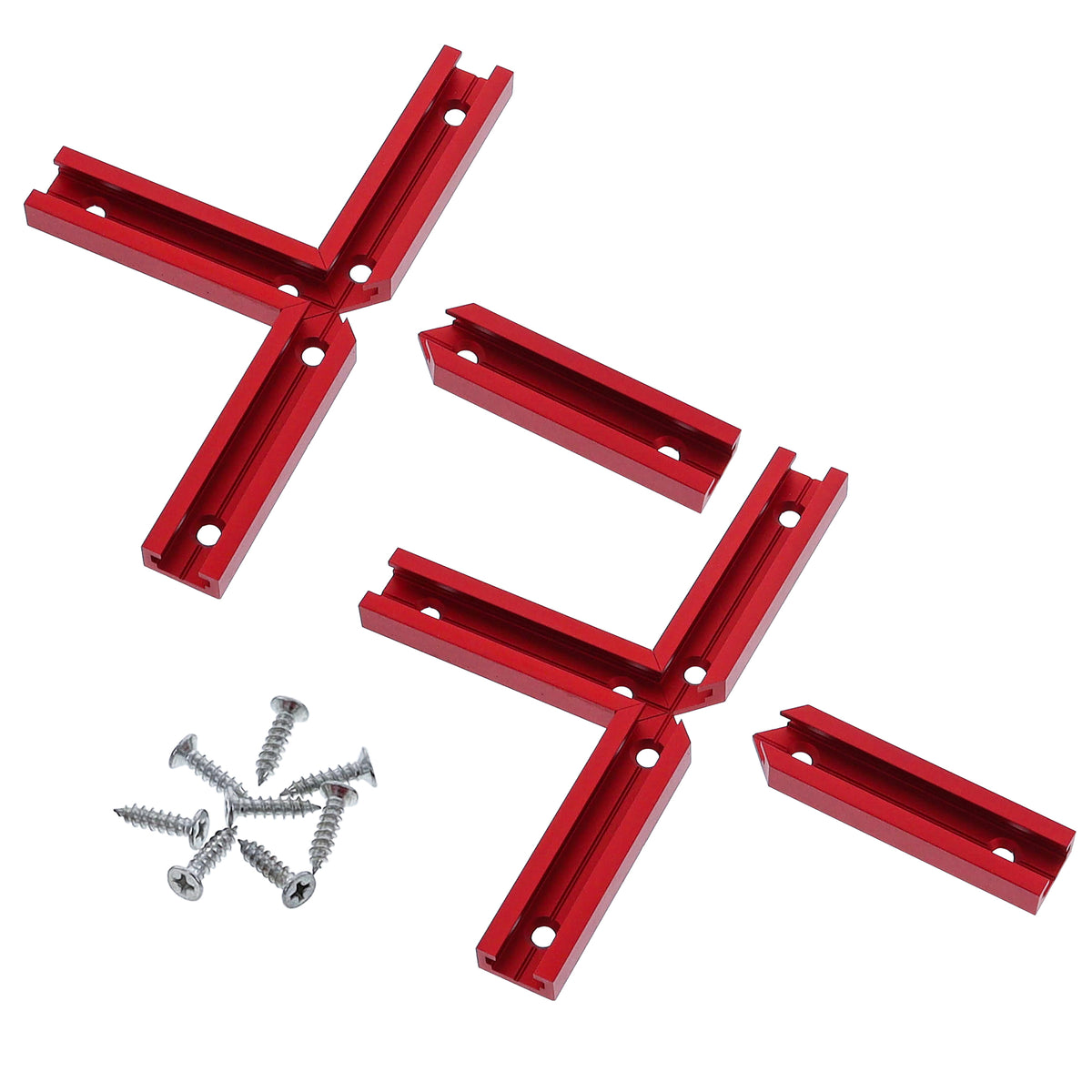

The 8 piece intersection kit allows you to install multiple t-track configurations and optimize anything with a t-track. This convienent kit forms two perpendicular tracks (intersection), giving you the ability to create a t-track powerhouse.
Includes 8 sections and mounting screws
T-Slot accepts both ¼-20” T-Bolts and ¼-20 Hex Bolts
Each section is 3” in length and mounting holes are 2” on center
Made of extruded aluminum
**For best results, measure and cut your track and then position where desired. Pre drill your holes prior to securing the track to your work surface.
