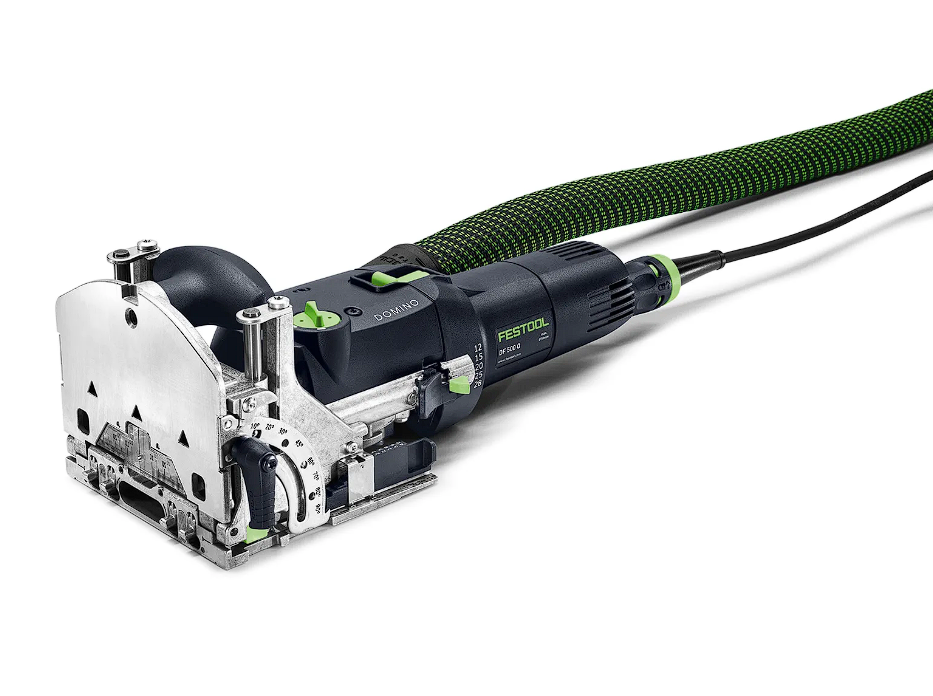

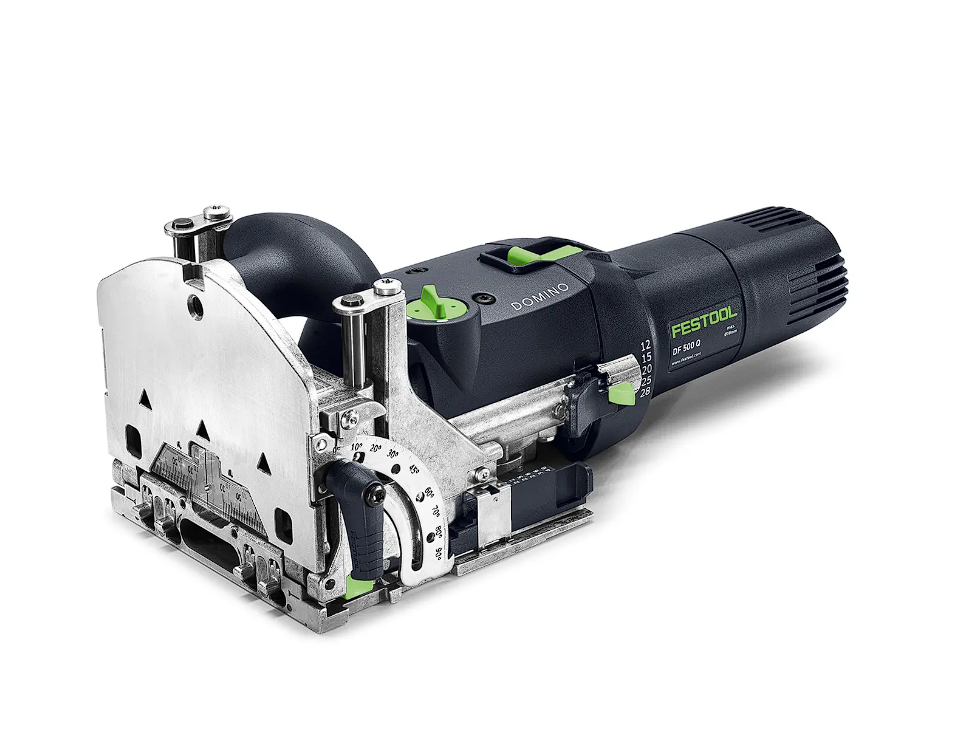

DOMINO Joiner DF 500 RQ-Set

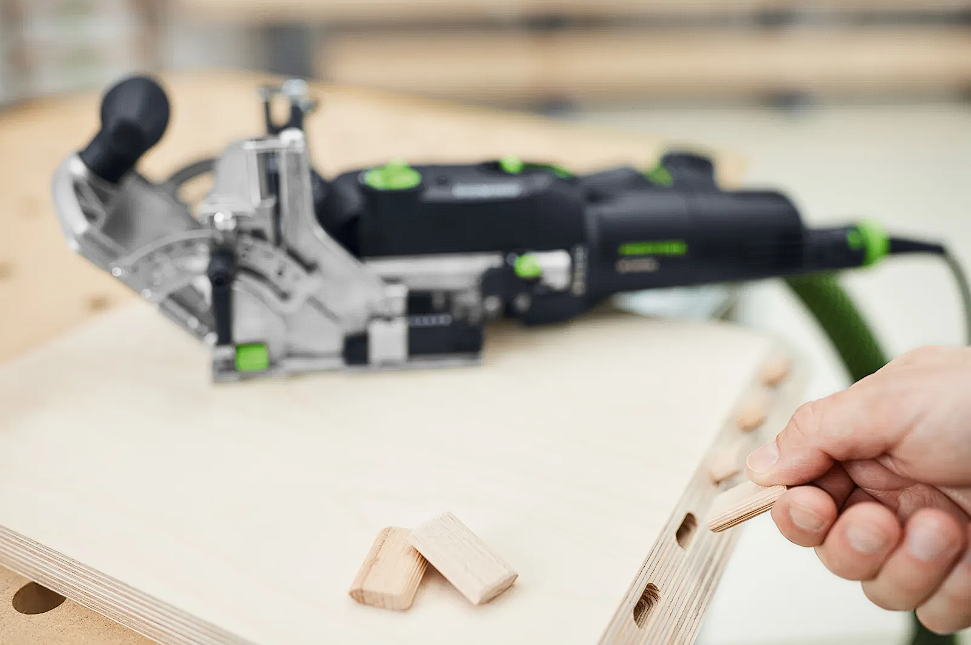

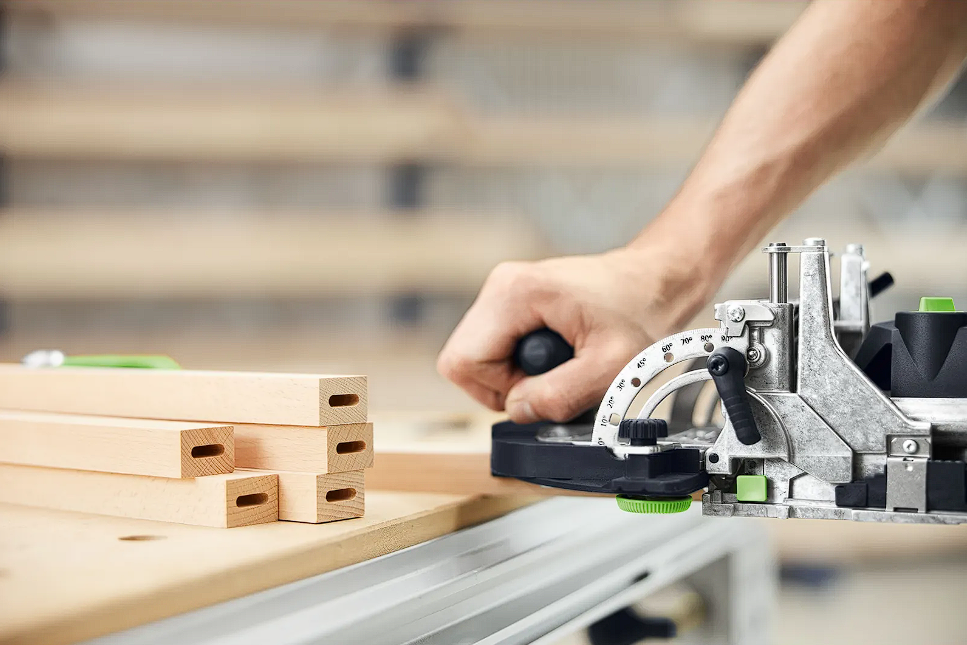

The Festool DOMINO DF 500 RQ‑Set delivers fast, accurate, and strong mortise cutting using Festool’s pendulum‑milling technology. Its oscillating cutter creates clean, consistent mortises that resist twist and provide reliable strength without complex setup.

The DF 500 handles both small components and larger frame construction with depth settings that match corresponding DOMINO tenon sizes. Integrated stop pins help with repeatable spacing, and the tool accepts cutters from 0.16" to 0.39" for a wide range of applications.

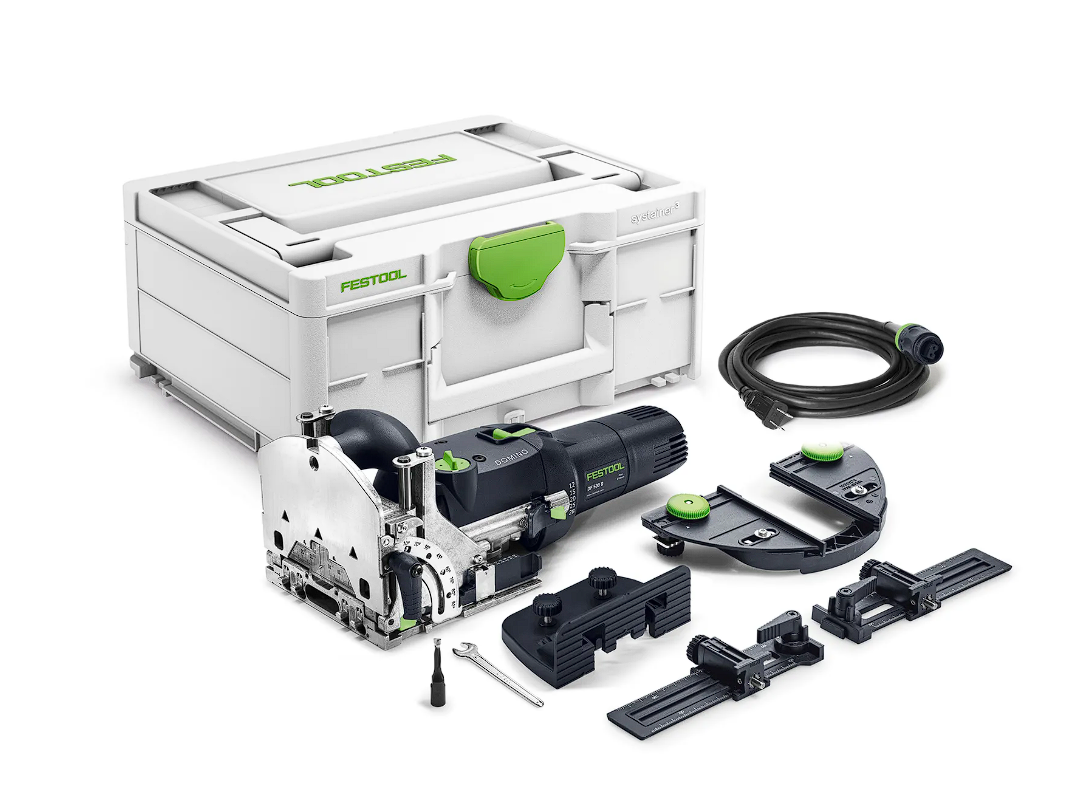

This RQ‑Set includes guides, fences, and a 5 mm cutter, all stored in a Systainer³ for organized transport. Pair the DF 500 with dust extraction for cleaner results and extended cutter life.

• Pendulum‑cutting action produces accurate, twist‑resistant mortises
• Works with cutters from 0.16" to 0.39" for a broad range of woodworking tasks
• Depth settings align with DOMINO tenon sizes from 0.47" to 1.10"
• Stop pins help with consistent spacing when cutting multiple mortises
• Handles small components and larger frame construction with ease
• Accepts DOMINO connectors for easy‑to‑disassemble projects

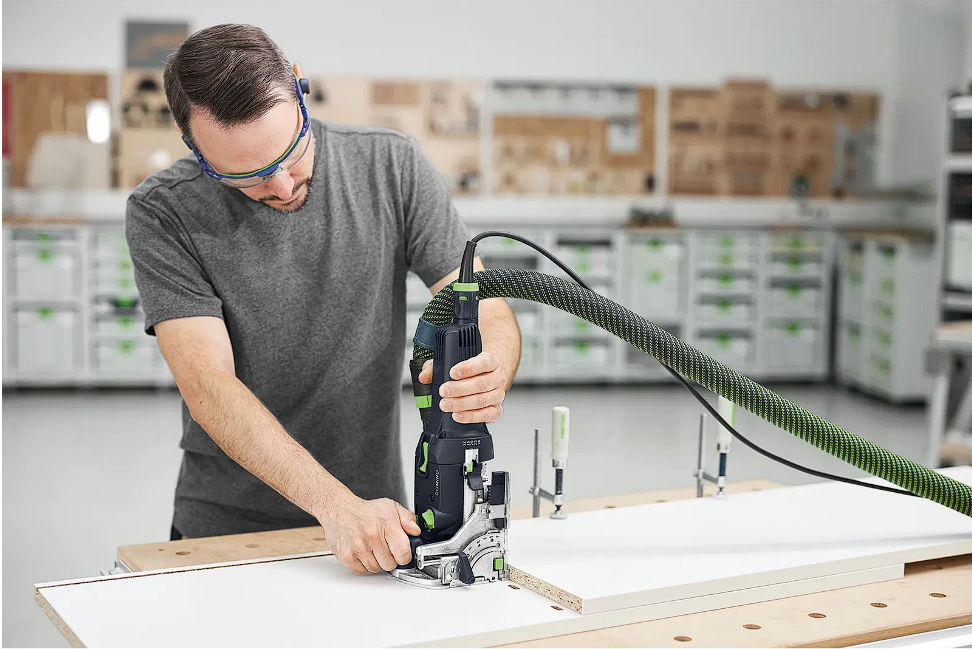

• 1‑1/16" dust port improves chip removal and surface visibility
• Fully compatible with the Festool DOMINO tooling system

• Power Consumption: 420 W
• Idle Engine Speed: 25,500 RPM
• Milling Depth Stops: 0.47", 0.59", 0.79", 0.98", 1.10"
• Maximum Milling Depth: 1.10"
• Cutter Diameters: 0.16", 0.20", 0.24", 0.31", 0.39"
• Depth Range Adjustment: 0.20"–1.18"
• Mitre Routing: 0°–90°
• Dust Extraction Port: 1‑1/16"
• Cable Length: 13.1 ft
• Drive Type: Corded
• Weight: 7.72 lbs

• Transport Weight with Accessories: 14.33 lbs



• (1) DOMINO Cutter D 5‑NL 20 HW‑DF 500
• (1) Trim Stop LA-DF 500/700
• (1) Support Bracket ZA-DF 500/700
• (1) Cross Stop QA‑DF 500/700
• (1) Spanner WAF 8
• (1) Plug‑it Power Cord SJO 18 AWG‑4
• (1) Systainer³ SYS3 M 187
